| Business Type | Manufacturer, Exporter, Supplier, Retailer, Trader, Distributor, Importer |
| Material | Steel,SS304 / SS316 / Powder-Coated Steel / PPGL-PUFF Panels |
| Shape | Square, Rectangular |
| Application | Hospitals,Cleanrooms,ICU,Isolation Rooms |
| Click to view more | |
Product Details
– Each door leaf is wrapped in protective polyethylene (PE) film to avoid scratches.
– Corners are reinforced with foam or hardboard corner guards.
– Vision glass panels are protected with masking tape or bubble wrap.
– Hardware (handles, locks, gaskets) is packed separately in polythene bags and labeled.
✅ Secondary Packing:
– Doors are placed in heavy-duty 5-ply corrugated boxes or shrink-wrapped.
– For larger shipments, doors are packed in wooden crates or on treated wooden pallets with strapping & stretch film.
– Crates are ISPM-15 certified for export where required.
✅ Marking on Packages:
– Each package/crate is labeled with:
📌 Product name & code
📌 Quantity & dimensions (L x W x T)
📌 Gross & Net weight
📌 Handling symbols: Fragile, Keep Dry, This Side Up
✅ Dimensions & Weight (example — approximate per leaf):
– Single Door: 1000mm x 2100mm x 50mm | ~ 50–70 kg
– Double Door: 2000mm x 2100mm x 50mm | ~ 90–120 kg
(actual depends on material & configuration)
✅ Container Loading:
– Packed doors are stacked & secured inside 20ft / 40ft containers depending on quantity.
– Empty spaces are filled with dunnage to avoid shifting during transit.

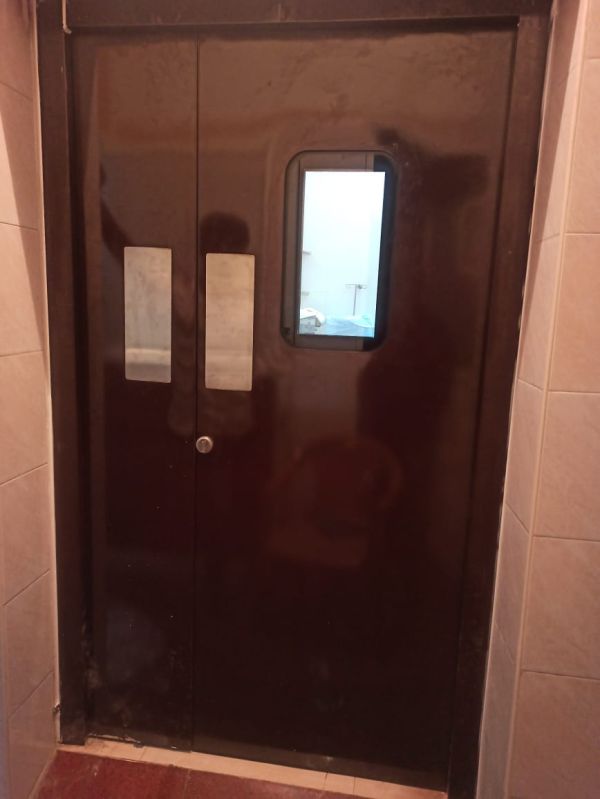

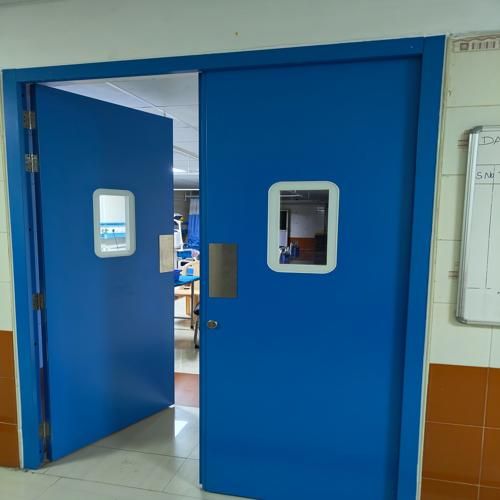

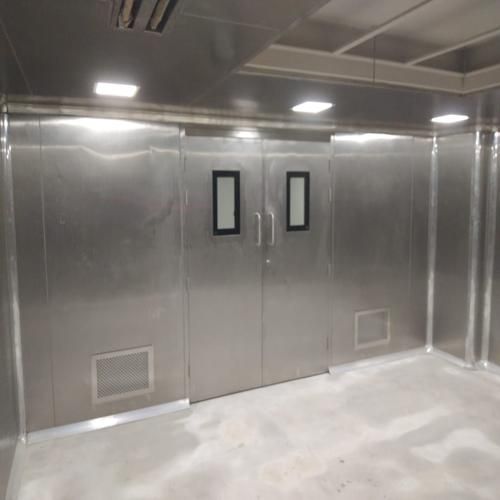

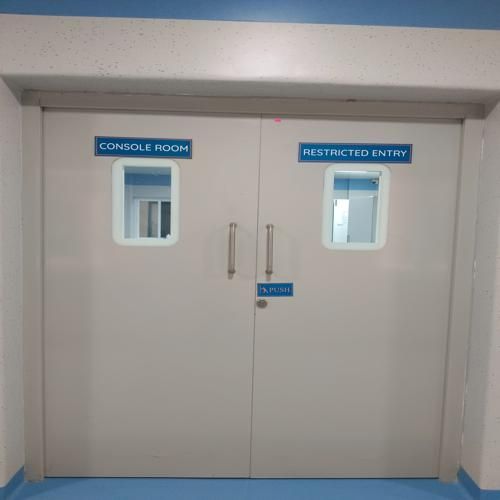

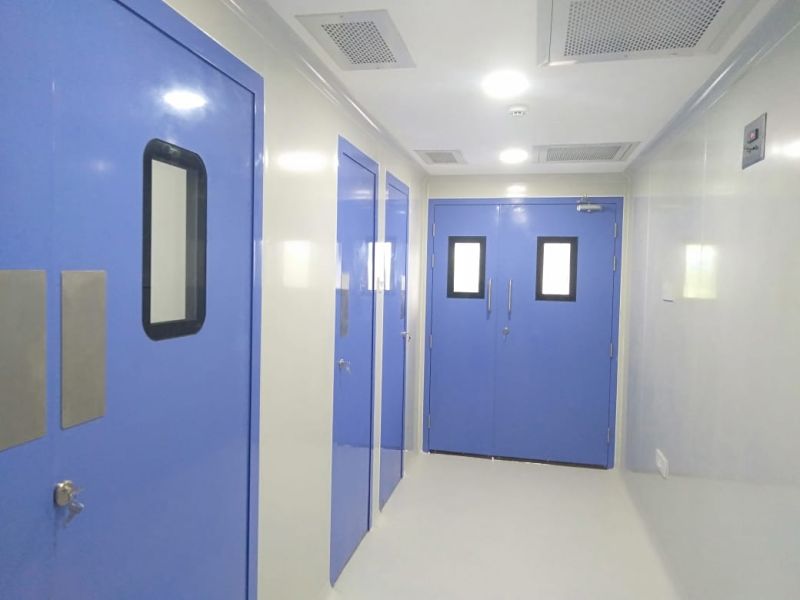

Modular Operation Theatre Door (MOT Door) – Hermetically Sealed
We manufacture and supply hermetically sealed modular OT doors, engineered to maintain controlled environments in cleanrooms, modular operation theatres (MOTs), and pharmaceutical areas.
These doors are designed to minimize air leakage, meet ISO 14644, cGMP, and NABH guidelines, and ensure contaminant-free zones.
🔧 Technical Specifications:
-
Door Type: Hermetically sealed sliding or hinged
-
Material of Construction: SS304 / SS316 / Powder-coated galvanized steel / HPL (on request)
-
Finish: Matt or glossy, anti-microbial coating available
-
Thickness: 40–50mm leaf, with internal honeycomb or PUF insulation for strength & sound attenuation
-
Vision Panel: Flush-mounted double-glass with desiccant and rounded corners for hygiene
-
Hardware:
✔ Heavy-duty SS hinges / track system
✔ Stainless steel handles / push plates
✔ Automatic door closer (for hinged)
✔ Motorized operators (for automatic sliding) -
Sealing: 3-sided perimeter gasket with drop-down seal or negative pressure lip seal
-
Air Leakage Rate: ≤ 0.5 m³/hr/m² at 50Pa (compliant to DIN EN 12207 Class 4)
⚙️ Features & Benefits:
-
Maintains positive/negative pressure differential in OT and cleanrooms
-
Easy-to-clean surfaces, seamless edges to prevent microbial accumulation
-
High resistance to chemicals, disinfectants, and impact
-
Smooth, quiet operation with minimal maintenance
-
Optional lead-lining for radiation-protected areas (X-ray, cath labs)
Applications:
🏥 Modular Operation Theatres
🏥 Intensive Care Units (ICUs)
🏥 Pharmaceutical Cleanrooms
🏥 Isolation Rooms / BSL Labs
🏥 Radiology Rooms (lead-lined)
