| Business Type | Manufacturer, Exporter, Supplier, Retailer, Trader, Distributor, Importer |
| Brand Name | PEACE |
| Material | Iron, Metal, Stainless Steel, Wooden |
| Surface Finishing | Chrome, Finished, Unfinished, ✔ Stainless Steel SS304 / SS316 ✔ Powder-Coated Galvanized Steel ✔ High Pressure Laminate (HPL) ✔ PV |
| Click to view more | |
Product Details
– Each panel is individually wrapped with protective polyethylene (PE) film to prevent scratches, dust, and moisture.
– Corners are secured with foam or hardboard corner guards to prevent impact damage.
– Surface protection sheets (craft paper or bubble wrap) can also be applied for extra care.
✅ Stacking & Bundling:
– Panels are stacked in bundles of 5–10 panels (depending on thickness and site requirements).
– Bundles are tightly strapped with polypropylene/steel bands for stability.
– Bundles are wrapped in stretch film/shrink wrap for additional dust & water resistance.
✅ Secondary Packaging:
– For export shipments, panels are loaded into wooden crates or placed on ISPM-15 treated wooden pallets.
– Wooden battens or spacers are placed between bundles to prevent shifting.
– If shipped as loose bundles, they are blocked and braced inside the container to avoid movement.
✅ Markings on Packages:
– Each bundle/crate is clearly labeled with:
📌 Product name & grade
📌 Quantity of panels (Nos. / Sq.m.)
📌 Panel dimensions (L x W x T)
📌 Gross & Net Weight
📌 Handling Symbols (Fragile / Keep Dry / This Side Up)

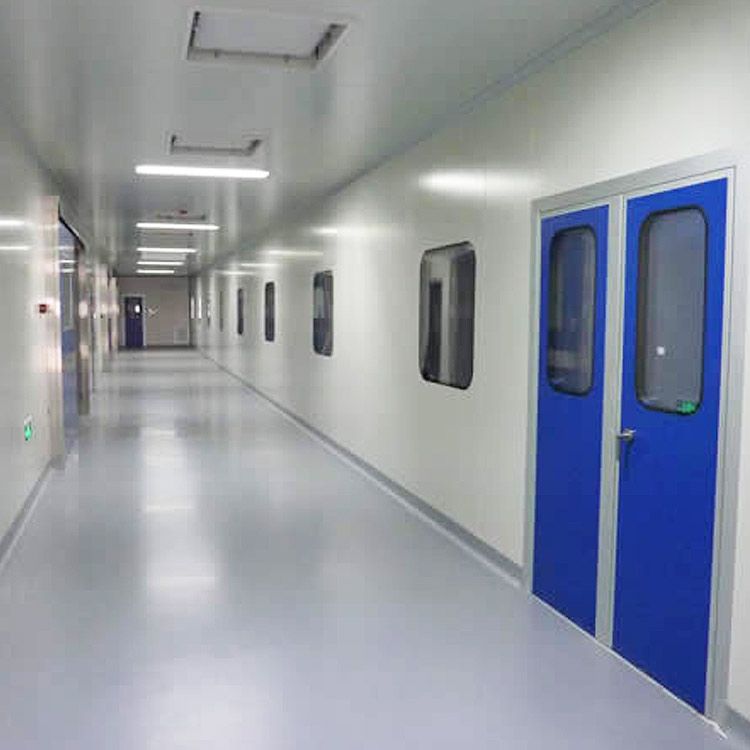

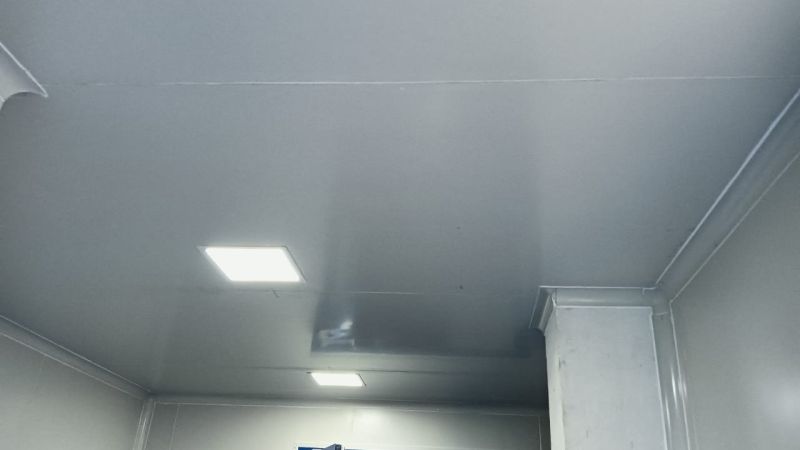

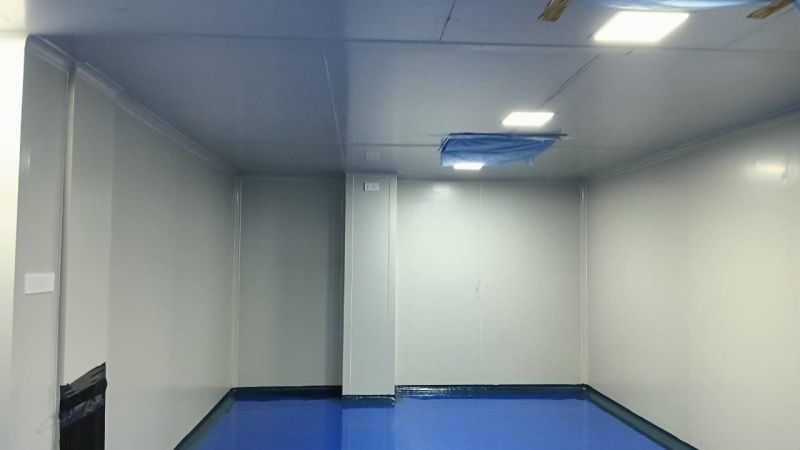

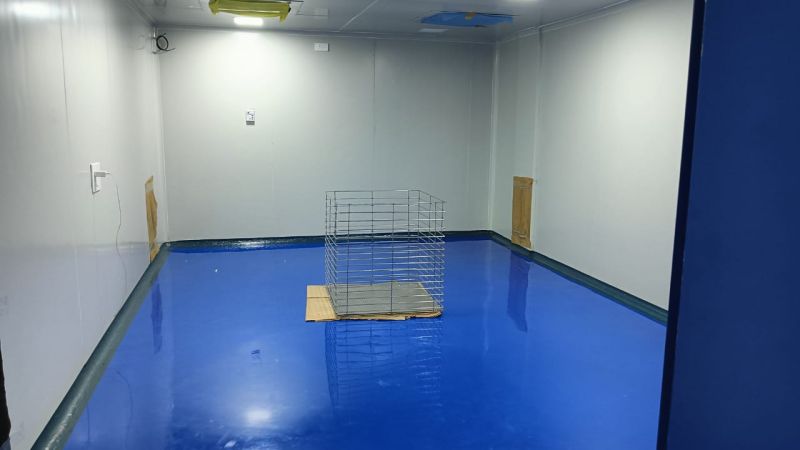

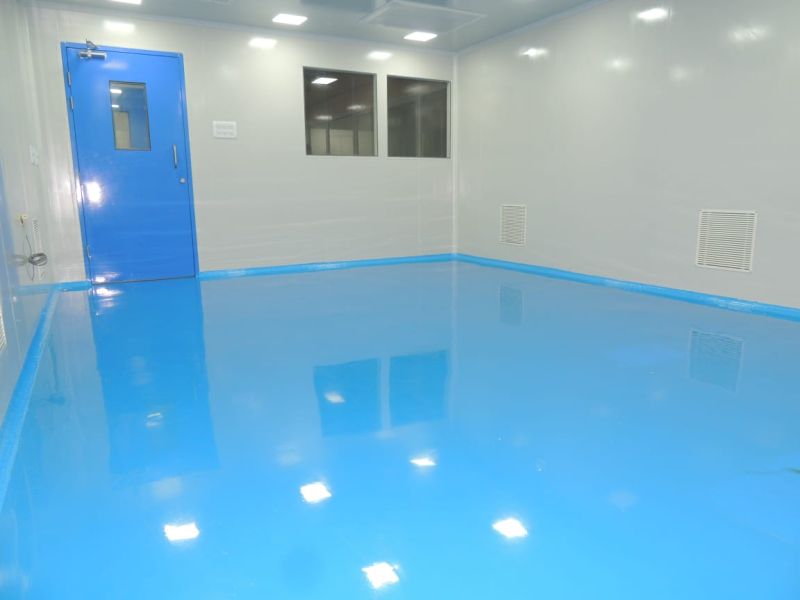

We manufacture high-quality modular cleanroom panels designed for controlled environments such as cleanrooms, modular operation theatres (MOTs), pharmaceutical manufacturing areas, laboratories, and food processing units.
These panels provide seamless, airtight enclosures that comply with ISO 14644, cGMP, NABH, and WHO-GMP standards.
-
Panel Thickness: 50mm / 75mm / 100mm
-
Core Material:
✔ Polyurethane Foam (PUF) – Density: 40–42 kg/m³
✔ Rockwool – Density: 48–96 kg/m³ (for fire resistance & acoustic insulation)
✔ EPS (on request) -
Surface Material:
✔ Stainless Steel SS304 / SS316
✔ Powder-Coated Galvanized Steel
✔ High Pressure Laminate (HPL)
✔ PVC-Laminated GI Sheets -
Panel Width: Standard 1160mm (custom sizes available)
-
Panel Length: Up to 6 meters
-
Jointing System: Tongue & groove with concealed fasteners and silicone sealing
-
Surface Finish:
✔ Smooth, glossy or matt
✔ Anti-microbial & chemical-resistant coating -
Fire Rating: Optional up to 2 hours with Rockwool core
-
Thermal Conductivity (PUF): ≤ 0.024 W/mK
-
Acoustic Performance: 25–35 dB sound attenuation (depending on core)
-
Airtight and seamless — prevents particulate & microbial contamination
-
Lightweight yet highly rigid construction
-
Resistant to disinfectants, impact, and moisture
-
Excellent thermal insulation, reducing HVAC loads
-
Easy to install, dismantle & modify — ideal for modular setups
-
Flush finishes compatible with covings, vision panels, doors & ceilings
✅ Fire-resistant Rockwool Panels
✅ SS or HPL surfaces for harsh environments
✅ Corner covings & skirtings for GMP compliance
✅ Integrated flush vision panels & service ducts
🏥 Modular Operation Theatres & ICUs
🏭 Pharmaceutical Cleanrooms & Packaging Rooms
🧪 Research & Diagnostic Laboratories
🥗 Food & Beverage Processing Units
🔬 Electronics & Semiconductor Cleanrooms
