Product Details
✅ Corners protected with foam or hardboard
✅ Secured inside ISPM-15 treated wooden crate with cushioning
✅ Marked with Product Name, Dimensions, Weight, Handling Symbols

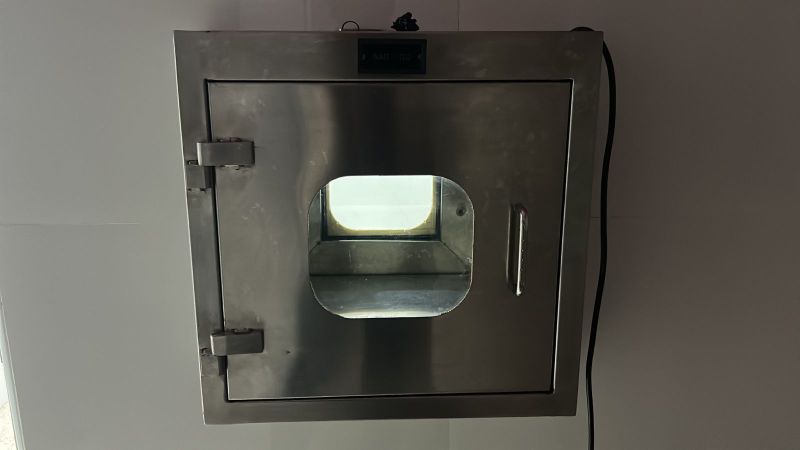

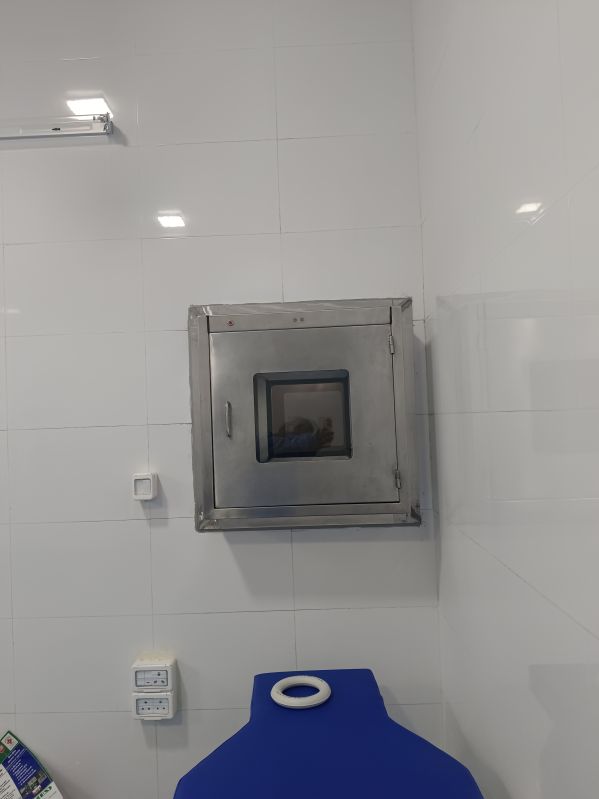

We manufacture high-performance Pass Boxes to enable contamination-free transfer of materials between clean and unclean zones in cleanrooms, modular operation theatres, and controlled environments.
Pass Boxes minimize cross-contamination by maintaining air cleanliness levels as per ISO 14644 & GMP guidelines.
| ✅ Type | Static / Dynamic |
| ✅ Construction Material | SS304 / SS316 / Powder-Coated GI |
| ✅ Internal Dimensions | Standard: 600 × 600 × 600 mm (customizable) |
| ✅ Doors | Electromagnetic interlocked, SS with toughened glass viewing panel |
| ✅ Filtration (Dynamic) | HEPA Filter ≥99.97% @0.3 micron, Pre-filter |
| ✅ UV Light | 15–20W germicidal UV lamp with timer |
| ✅ Lighting | LED flush-mounted, glare-free |
| ✅ Control Panel | LED indicators, UV timer, interlock status |
| ✅ Noise Level (Dynamic) | ≤65 dB(A) |
| ✅ Air Velocity (Dynamic) | 0.45 m/s–0.6 m/s (approx.) |
| ✅ Power Supply | 230V/50Hz AC |
✅ Prevents cleanroom air contamination during material transfer
✅ Dynamic model maintains positive pressure & laminar airflow
✅ Electromagnetic door interlock prevents simultaneous door opening
✅ Easy-to-clean stainless steel surfaces with rounded corners
✅ Optional UV sterilization ensures pathogen-free materials
✅ Long service life with minimal maintenance
🏭 Pharmaceutical & Biotech Industries
🏥 Modular Operation Theatres & ICUs
🧪 Research & Diagnostic Laboratories
🥗 Food & Beverage Production
🔬 Semiconductor & Electronics Cleanrooms
🎯 841460
“Ventilating or recycling hoods incorporating a fan with filter”
📦 Packaging Details:

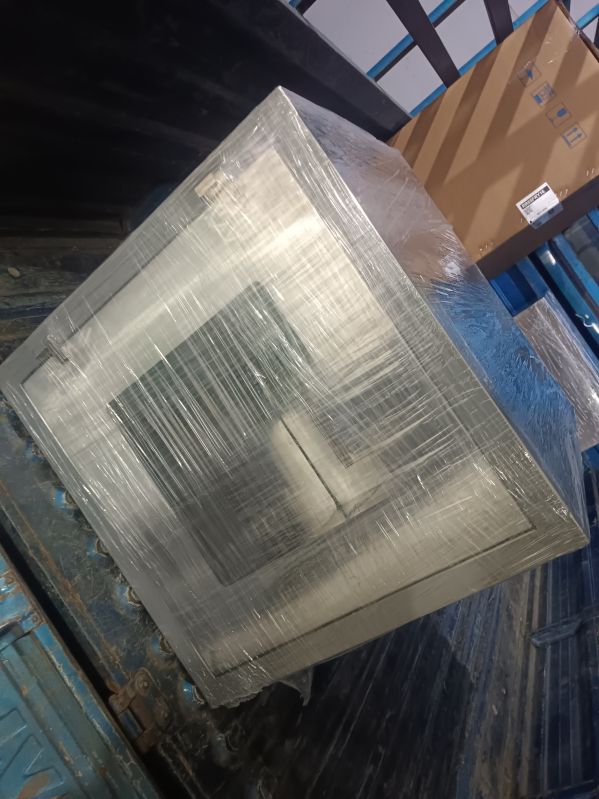

✅ Each pass box is wrapped with PE sheet & bubble wrap
✅ Corners protected with foam or hardboard
✅ Secured inside ISPM-15 treated wooden crate with cushioning
✅ Marked with Product Name, Dimensions, Weight, Handling Symbols
